igwn_ligolw.lsctables Module

LSC Table definitions.

See the LDAS CVS repository at http://www.ldas-sw.ligo.caltech.edu/cgi-bin/cvsweb.cgi/ldas/dbms/db2/sql for more information.

Importing this module has the side effect of updating the ligolw.Table.TableByName dictionary to map all of the names of tables defined in this module to the classes defined here. This causes document parsing to construct instances of these classes, and use their respective row classes, when loading a document, instead of the generic types in ligolw.

Example:

>>> from igwn_ligolw import lsctables

Functions

HasNonLSCTables(elem)	Return True if the document tree below elem contains non-LSC tables, otherwise return False.
New(cls[, columns])
reset_next_ids(classes)
use_in(ContentHandler)

Classes

Coinc(**kwargs)
CoincDef(**kwargs)
CoincDefID	alias of next_coinc_def_id
CoincDefTable([attrs])
CoincID	alias of next_coinc_event_id
CoincInspiral(**kwargs)	Example:
CoincInspiralTable([attrs])
CoincMap(**kwargs)
CoincMapTable([attrs])
CoincRingdown(**kwargs)
CoincRingdownTable([attrs])
CoincTable([attrs])
DQSpec(**kwargs)
DQSpecListID	alias of next_dq_list_id
DQSpecListRowID	alias of next_dq_list_row_id
DQSpecListTable([attrs])
Process(**kwargs)	NOTE: for some historical reason, this table records start and end times as integer-valued quantities, only.
ProcessID	alias of next_process_id
ProcessParams(**kwargs)	Example:
ProcessParamsTable([attrs])
ProcessTable([attrs])
SearchSummVars(**kwargs)
SearchSummVarsID	alias of next_search_summvar_id
SearchSummVarsTable([attrs])	NOTE: this table is deprecated and its definition will be removed.
SearchSummary(**kwargs)	Example:
SearchSummaryTable([attrs])
Segment(*args, **kwargs)	Example:
SegmentDef(**kwargs)	Example:
SegmentDefID	alias of next_segment_def_id
SegmentDefTable([attrs])
SegmentID	alias of next_segment_id
SegmentSum(*args, **kwargs)
SegmentSumID	alias of next_segment_sum_id
SegmentSumTable([attrs])
SegmentTable([attrs])
SimBurst(**kwargs)	Example:
SimBurstID	alias of next_simulation_id
SimBurstTable([attrs])
SimCBC(**kwargs)	Example: >>> x = SimCBC() >>> x.ra_dec = 0., 0.
SimCBCID	alias of next_cbc_sim_id
SimCBCTable([attrs])
SimInspiral(**kwargs)	Example:
SimInspiralID	alias of next_simulation_id
SimInspiralTable([attrs])
SimRingdown(**kwargs)
SimRingdownID	alias of next_simulation_id
SimRingdownTable([attrs])
SnglBurst(**kwargs)
SnglBurstID	alias of next_event_id
SnglBurstTable([attrs])
SnglInspiral(**kwargs)
SnglInspiralID	alias of next_event_id
SnglInspiralTable([attrs])
SnglRingdown(**kwargs)
SnglRingdownID	alias of next_event_id
SnglRingdownTable([attrs])
SummValue(**kwargs)	Example:
SummValueID	alias of next_summ_value_id
SummValueTable([attrs])
TimeSlide(**kwargs)
TimeSlideID	alias of next_time_slide_id
TimeSlideTable([attrs])
VetoDef(**kwargs)
VetoDefTable([attrs])
gpsproperty(s_name, ns_name)	Descriptor used internally to implement LIGOTimeGPS-valued properties using pairs of integer attributes on row objects, one for the integer seconds part of the GPS time and one for the integer nanoseconds part.
gpsproperty_with_gmst(s_name, ns_name, gmst_name)	Variant of the gpsproperty descriptor, adding support for a third "GMST" column.
instrumentsproperty(name)
segmentproperty(start_name, stop_name)	Descriptor used internally to expose pairs of GPS-valued properties as segment-valued properties.

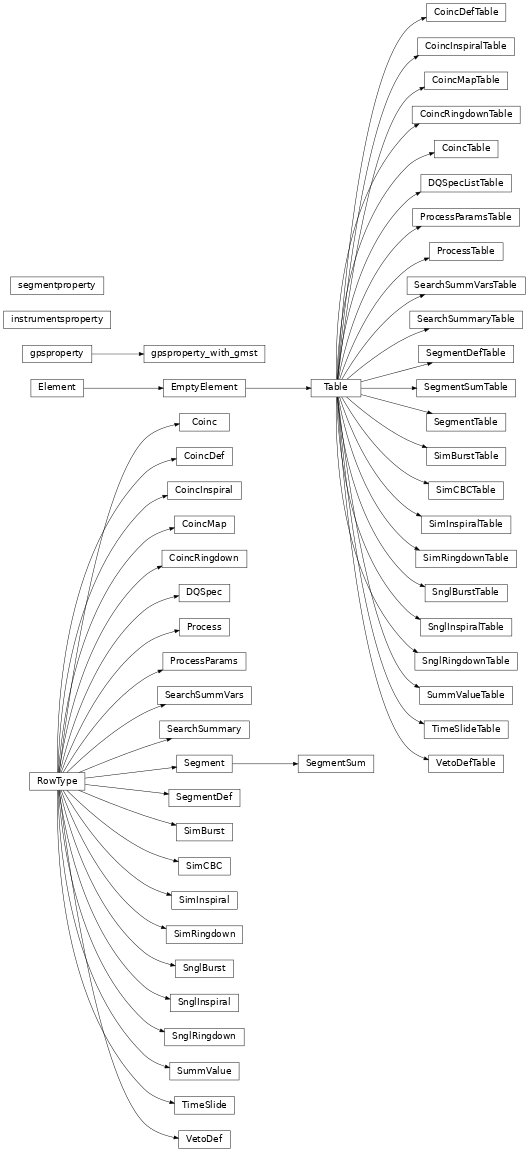

Class Inheritance Diagram
